tecsis Compressive Load Cell With Strain Gage , Load Cell Transducer
Features :
Description:

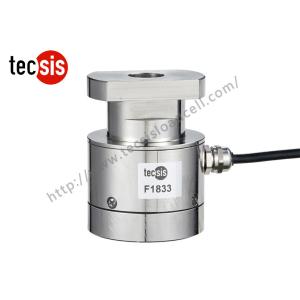

F1833 is designed for large-scale high-speed punching machines, such as metal, plastic,rubber stamping machines and other stamping applications.
lts capacitie is 6t and 10t, and it comes complete with 3m of load cell cable.
The height is 80mm and the diameter is 60mm. It is suitable for many application.
It is made of alloy steel, this makes it can be used for most industrial environments.
The cut off frequency is 50Hz, the lifetime is 107.
Application:
Suitable for large-scale high-speed punching machines, such as metal, plastic,rubber stamping machines and other stamping applications.
Technical parameters:
| Specifications | Technique |
| Rated output | 1.0±10%mV/V |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.5% F.S. |
| Hysteresis | 0.1% F.S. |
| Repeatability | 0.1% F.S. |
| Creep (30min) | 0.1% F.S. |
| Temp. effect on output | 0.05% F.S. / 10ºC |
| Temp. effect on zero | 0.05% F.S. / 10ºC |
| Input impedance | 750±10Ω |
| Output impedance | 700±5Ω |
| Insulation | ≥5000MΩ/ 100VDC |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated temp. range | - 10~60ºC |
| Operation temp. range | - 20~80ºC |
| Safe overload | 150% F.S. |
| Ultimate overload | 300% F.S. |
| Cable size | Ø5×3000 mm |
| Protection class | IP65 |
| Cut off frequency(load cycles) | 50Hz |
| Lifetime(load cycles) | 107 |
| Cable color code | Input: Red(+) Black(-); Output: Green(+) White(-); |
Size and capacity:
Load direction:
Schematic Wiring Diagram :
